We Clean The Air You Breathe

our products

FAH Series

AHU AIR STERILIZING PURIFIER

Features

  • Highly efficient at eradicating viruses and bacteria (one-time microorganism kill rate is 93.1%).
  • Effectively removes airborne particulates (one-time PM2.5 removal rate is 97%).
  • Outstanding one-pass particle removal rate (MERV 14).
  • Lifetime washing of the Micro-electrostatic filter avoids replacement and substantially reduces consumable costs.
  • Low energy consumption at max. 13W per filter.
  • Replaces the traditional bag filter section of AHU with lower air resistance.
  • Protects AHU and prevents blockage of the air-conditioning system from affecting refrigeration and heating efficiency.
  • PRAX intelligent power module stabilizes voltage output and ensures maximum purification efficiency.

Additional Advantages:

  • PRAX intelligent power module stabilizes voltage output, ensuring maximum purification efficiency.
  • Multiple control boxes and junction boxes are optional.
  • Flexible installation options.
  • UL listed for enhanced safety and compliance.
Product Specifications:
MODELFAH01M Single ModuleFAH03M Double ModuleFAH04M-A Single ModuleFAH05M Double Module
SPECIFICATIONS:
Applicable air volume (l/sec)472l/sec944l/sec305l/sec611l/sec
Status IndicatorPower
Pressure drop<50 Pa@2.5m/s
Primary purification efficiency of PM2.5≥ 96% (@2.5m/s) ;≥ 87% (@3.5m/s)
Purification efficiency of microorganism≥95% (@2.5m/s)
Power supply (AC V/Hz)220-240 ˜50Hz
Rated power (W)713510
Overall dimensions (Length x Width x Height) mm370 x 610 x 150680 x 610 x 150222 x 610 x 150444 x 610 x 150
ComponentsFrame, pre-filter, charge grid, micro electrostatic filter, M7 activated carbon filter (optional), M8 formaldehyde filter (optional).
Weight (kg)1013611

FFC Series

Fan coil air STERILIZING PURIFIER

Features

  • Highly efficient at eradicating viruses and bacteria (one-time microorganism kill rate is 99.96%).
  • Effectively removes airborne particulates (one-time PM2.5 removal rate is 99%).
  • Lifetime washing of the Micro-electrostatic filter avoids replacement and substantially reduces consumable costs.
  • Concealed in the return air inlet of central air-conditioning without disrupting decor or occupying floor space.
  • Prevents the influence on return air effectiveness of air-conditioning with ultralow air resistance.
  • Cleans without dead spots through three-dimensional circulation.
  • Protects fan coils and prevents blockage of the air-conditioning system from affecting refrigeration and heating efficiency.
  • Intelligent control linked to the fan coil, purifying when air flows and stopping when air stops.
  • Comprehensive adaptability to fan coils of internal units, etc., in fluorine and water systems.
Product Specifications:
MODELFFC03M-A2FFC05M-A2FFC06M-A2FFC08M-A2FFC-S
SPECIFICATIONS:
Overall dimensions (Length x Width x Height) mm660 x 241 x 90960 x 241 x 901170 x 241 x 901470 x 241 x 90550 x 523 x 72
Applicable Air Volume (@0.5-1-1.5m/s)170~340~510280~570~850340~690~1020460~920~1360400~820~1220
Pm2.5 One-time Purification Efficiency(@0.5-1-1.5m/s)98-93-90%98-95-90%
Power Supply (V/hz)240/50
Rated Power (W)56788
Status IndicationRunning/cleaning - - -Running
AdditionalCleaning prompt, pressure switch/ M8 methanol filter (optional) - - -
Net Weight (Kg)5.578.5107

RAG 6 MODEL

Features

  • Fits into standard 600 x 600 ceiling grid.
  • Simply replace existing RAG.
  • Suitable for all Fan Coil Units.
  • MERV14 Filtration and sterilization at 50pa Pressure Loss.
  • Low power consumption means it can be connected directly to AC unit control.
  • Hinged grill allows for easy access to filter for cleaning and servicing.
  • Various spigot sizes available to suit all volumes.
  • Suitable for all units up to 330l/sec.
  • Hanging brackets for simple installation and zero weight on ceiling structure.
  • Power Consumption: 5W, 240V/50AC.
  • Air Volume up to 330/sec @ 50Pa.
  • Diffuser size: 595L x 595 W.
  • Plenum size: 700L x 700W x 300H.
  • Spigot size: 250Ø, 300Ø, 350Ø, 400Ø or 450Ø.
Product Specifications:
MODEL MRAG0606/04
SPECIFICATIONS:
Power Supply (V/Hz)220/50
Rated Power(W)5W
Rated air volume (l/sec)330l/sec
Accumulated particulate Matter Purification (PM2.5)≥96%
Purification Efficiency of microorganisms≥95%
Body Dimensions (Length x Width x Height) mm700 x 700 x 300
Diffuser Grill size (width)595 x 595
Weight (kg)24kg
Product ColorBlack
Diffuser ColorWhite

RAG 12 MODEL

Features

  • Fits into standard 1200 x 600 ceiling grid.
  • Simply replace existing RAG.
  • Suitable for all Fan Coil Units.
  • MERV14 Filtration and sterilization at 50pa Pressure Loss.
  • Low power consumption means it can be connected directly to AC unit controls.
  • Hinged grill allows for easy access to filter for cleaning and servicing.
  • Various spigot sizes available to suit all volumes.
  • Three units available.
  • Suitable for all units up to 972l/sec.
  • Hanging brackets for simple installation and zero weight on ceiling structure.
  • Power Consumption: 240V/50AC.
  • Air Volume: MRAG1206-01 up to 472l/sec @50Pa, 7W; MRAG1206-05 up to 565l/sec @ 50Pa, 10W; MRAG1206-03 up to 972l/sec @ 50Pa, 13W.
  • Diffuser size: 1195L x 595 W.
  • Plenum size: 1195L x 700W x 300H.
  • Spigot size: 250Ø, 300Ø, 350Ø, 400Ø or 450Ø.
Product Specifications:
MODEL MRAG1206/01 MRAG1206/03 MRAG1206/05
SPECIFICATIONS:
Power Supply (V/Hz)220/50220/50220/50
Rated Power(W)7W13W10W
Rated air volume (l/sec)472l/sec944l/sec565l/sec
Accumulated particulate Matter Purification (PM2.5)≥96%≥96%≥96%
Purification Efficiency of microorganisms≥95%≥95%≥95%
Body Dimensions (Length x Width x Height) mm1195 x 700 x 3001195 x 700 x 3001195 x 700 x 300
Diffuser Grill size (width)1195 x 5951195 x 5951195 x 595
Weight (kg)32kg37kg36kg
Product ColorBlackBlackBlack
Diffuser ColorWhiteWhiteWhite

FAD Series

Air Duct Sterilizing Purifier
Features
  • Highly efficient at eradicating viruses and bacteria (one-time microorganism kill rate is 94.2%).
  • Effectively removes airborne particulates (one-time PM2.5 removal rate is 95.4%).
  • Outstanding one-pass particle removal rate (MERV 14).
  • Low attenuation with high-speed airflow.
  • Suitable for high-humidity environments.
  • Ensures safer and more stable performance.
  • Offers various models for different air volumes.
Additional Advantages:
  • Lifetime washing of the Micro-electrostatic filter avoids the need for replacement and substantially reduces consumable costs.
  • Can be used directly after cleaning.
  • Low energy consumption facilitated by a pneumatic switch.
  • Flat module for easy installation.
Product Specifications
MODELFAD01M-AFAD02M-AFAD03M-A
SPECIFICATIONS:
Applicable air volume (m³/h)130026003900
Equipment resistance (Pa)<50@2.5m/s
Primary purification efficiency of PM2.5>95% (@2.5/s); >94% (@3.5M/s) ; >90% (@45M/s)
Primary purification efficiency of microorganism (@2.5m/s)>95%
Power Supply (V/Hz)110-240 / 50-60
Applicable air volume (m³/h)51015
Status indicationPower switch / Running indicator light
Overall dimensions (Length x Width x Height) mm400 x 330 x 446700 x 330 x 4461000 x 330 x 446
Weight (kg)131925
Product Structure
  1. Control Box.
  2. Door Panel.
  3. Purification parts.
  4. Electrode Insulation board.
  5. Cover.
  6. Pre-Filter.
  7. Charge Grid.
  8. MESP Filter.
  9. Running indicator light.
  10. Power Light.

FSA Series

Ceiling-mounted / wall mounted AIR STERILIZING Purifier

Features

  • Highly efficient at eradicating viruses and bacteria (one-time microorganism kill rate is 99.96%).
  • Effectively removes airborne particulates (one-time PM2.5 removal rate is 99%).
  • Ceiling mounted with no floor occupation, easy to maintain.
  • Simple design fits in most applications.
  • Runs independently in big air volume with a fan component, no need to link with the Central AC system.
  • Continuous air circulation through a big air inlet in the centre, flanked by four long and narrow air outlets.
  • Low maintenance cycle, high removal rates for both particles and methanol.
  • No need to replace the filter, low zone (<0.003 mg/m3), stable performance endorsed by several certificates.
  • Low energy consumption, production of negative ions enhances the environment for end users.
  • Unit supplied with remote control.
Product Specifications:
MODELFSA550M-AFSA650-W
SPECIFICATIONS:
Power Supply (V/Hz)220/50100˜240/50˜60
Rated Power(W)6330/25/20/15/13
Rated Air flow (l/sec)650l/sec650l/sec 650/500/400/300/200 m³/h
Clean Air Volume (CADR particulate matter) (m³/h)510550
Accumulated particulate Matter Purification Energy Consumption (CCM particular Matter)P3P3
Purification Energy Efficiency (Particulate Matter (m³//(w:h))8.1 (High Efficiency)18.3 (High Efficiency)
Bactericidal rate99.99%99.90%
Applicable area (m²)35-60*35-60*
Noise (high/medium/low sound pressure level) (dB(A))40/37/3540/36/33/30/28
Noise (high/medium/low power level) (dB(A))54/52/4948/44/41/38/36
Body dimensions (Length x Width x Height) mm570 x 570 x 290900 x 415 x 225
Panel dimensions (Length x Width x Height) mm650 x 650 x 28900 x 415 x 225
Weight2421
Product ColorWhiteWhite
Additional FunctionsM8 Methanol FilterRemote Control / Tuya App / RS485
Types of Touch ProtectionClass IIClass II

KJ series: kj300

MESP Portable Air Sterilizing Purifier
Features
  • Efficient removal of PM2.5, viruses, bacteria, pollen, allergens, and other particulate pollutants.
  • Kills 99.99%+ viruses and 99.96% bacteria; removes 99%+ airborne particulates.
  • No material consumption; the filter is washable, no need to replace.
  • Releases negative ions to keep refreshing the air.
  • M8 methanol filter of Japan steadily adsorbs and decomposes methanol and other harmful chemical gases.
  • "Surface design" of the front panel expands air volume at the bottom and effectively purifies sedimentary pollutants at the bottom.
  • Low running noise, as low as 34dB in silent mode, and even lower in sleep mode.
  • Built-in particle sensor, indicator light displays air quality, automatically regulates air speed, and intelligently prompts cleaning.
  • Low energy consumption, safe, and power-saving.
  • Magnetic buckle panel is easy to disassemble, assemble, and clean.
Product Specifications:
SPECIFICATIONS:
Power Supply (V/Hz)240/50
Rated Power(W)55
Rated air volume (m³/h)420
Rated air volume (l/sec)116l/sec
Clean Air Volume (CADR particulate matter) (m³/h)300
CCM Level (Particulate matter)P1
Clean air volume (CADR Formaldehyde (m³/h)100 (Optional)
Purification Energy Efficiency (m³/(W:h)) - PM5.4 (High efficiency)
Purification Energy Efficiency (m³/(W:h)) - Formaldehyde1.7 (High efficiency) (Optional)
Area of use (m)20-25
Noise (sound power level) dB(A)60 (High Speed mode); 34 (Sleep mode)
Weight (kg)7.5
Anion content (PCs/cm³)10 x 10ˆ5
Ozone Concentration<0.003g/m³
Disinfection methodElectrostatic disinfection
Bacteria Killing rate (%)99.96 (Staphylococcus albus)
Virus Killing rate (%)>=99.99 (H1N1)
Additional FunctionsM8 Methanol filter
Types of protection against electric shockII Class
Mobile APP controlNone

KJ series: kj400

MESP Portable Air Sterilizing Purifier

Features

  • Efficient removal of PM2.5, viruses, bacteria, pollen, allergens, and other particulate pollutants.
  • Kills 99.99%+ viruses and 99.96% bacteria; removes 99%+ airborne particulates.
  • No material consumption; the filter is washable, no need to replace.
  • Releases negative ions to keep refreshing the air.
  • M8 methanol filter of Japan steadily adsorbs and decomposes methanol and other harmful chemical gases.
  • "Surface design" of the front panel expands air volume at the bottom and effectively purifies sedimentary pollutants at the bottom.
  • Low running noise, as low as 34dB in silent mode, and even lower in sleep mode.
  • Built-in particle sensor, indicator light displays air quality, automatically regulates air speed, and intelligently prompts cleaning.
  • Low energy consumption, safe, and power-saving.
  • Magnetic buckle panel is easy to disassemble, assemble, and clean.
Product Specifications:
SPECIFICATIONS:
Power Supply (V/Hz)240/50
Rated Power(W)55
Rated air volume (m³/h)570
Rated air volume (l/sec)158l/sec
Clean air volume (CADR Particulate matter) (m³/h)400
CCM Level (Particulate matter)P1
Clean air volume (CADR Formaldehyde (m³/h)180 (Optional)
Purification Energy Efficiency (m³/(W:h)) - PM7.3 (High efficiency)
Purification Energy Efficiency (m³/(W:h)) - Formaldehyde3.3 (High efficiency) (Optional)
Area of use (m²)28-48
Noise (sound power level) dB(A)60 (High Speed mode); 32 (Sleep mode)
Weight (kg)9.5
Anion content (PCs/cm³)10 x 10ˆ5
Ozone Concentration<0.003mg/m³
Disinfection methodElectrostatic disinfection
Bacteria Killing rate (%)99.96 (Staphylococcus albus)
Virus Killing rate (%)>=99.99 (H1N1)
Additional functionsM8 Methanol filter
Types of protection against electric shockII Class
Mobile APP controlISO/Android (Tuya WIFI)

KJ series: kj750

MESP Portable Air Sterilizing Purifier

Features

  • Efficient removal of PM2.5, viruses, bacteria, pollen, allergens, and other particulate pollutants.
  • Kills 99.99%+ viruses and 99.96% bacteria; removes 99%+ airborne particulates.
  • No material consumption; the filter is washable, eliminating the need for replacement.
  • Releases negative ions to keep the air refreshing.
  • Optional M8 methanol filter steadily adsorbs and decomposes methanol and other harmful chemical gases.
  • "Surface design" of the front panel expands air volume at the bottom and effectively purifies sedimentary pollutants at the bottom.
  • Low running noise, as low as 34dB in silent mode, and even lower in sleep mode.
  • Built-in particle sensor; the indicator light displays air quality, automatically regulates air speed, and intelligently prompts cleaning.
  • Low energy consumption, ensuring safety and power savings.
  • Magnetic buckle panel is easy to disassemble, assemble, and clean.
Product Specifications:
SPECIFICATIONS:
Power Supply (V/Hz)240/50
Rated Power(W)65
Rated air volume (m³/h)750
Rated air volume (l/sec)208l/sec
Clean air volume (CADR Particulate matter) (m³/h)720
CCM Level (Particulate matter)P1
Clean air volume (CADR Formaldehyde (m³/h)None
Purification Energy Efficiency (m³/(W:h)) - PM11.1 (High efficiency)
Purification Energy Efficiency (m³/(W:h)) - FormaldehydeNone
Area of use (m)50-85
Noise (sound power level) dB(A)<61
Weight (kg)12.7
Anion content (PCs/cm³)10 x 10ˆ5
Ozone Concentration<0.003mg/m³
Disinfection methodElectrostatic disinfection
Bacteria Killing rate (%)99.96 (Staphylococcus albus)
Virus Killing rate (%)>=99.99 (H1N1)
Additional functionsNone
Types of protection against electric shockII Class
Mobile APP controlIOS/Android (Tula WIFI)

FXF-K series

HIGH EFFICIENCY ACTIVATED CARBON BOX

Features

  • High-quality columnar carbon: High-quality columnar activated carbon, strong adsorption, fast deodorization, no ash, no secondary pollution, removal rate≥ 90%.
  • V-Pack Carbon plate structure: The W-shaped honeycomb mesh carbon board has more uniform filing and more thorough purification: the wind resistance is small.
  • Well-developed pore structure: The microcrystalline carbon material has a large specific surface area. The unfolded surface area of the micropores in1g of carbon can reach 800-3000m³, and the adsorption capacity is large.
  • Ergonomic design: Modular combination, pull-out activated carbon board, independent transparent plastic bag packaging, easy installation, and maintenance.
Free modular combination
Standard Module
Combination of right and left
Combination of Series
FKE+FUV+FKF Combination
Combination of the up & down
Product Specifications:
MODEL FKF-06K FKF-08K FKF-12K FKF-15K FKF-20K FKF-23K
Shape of carbon modelActivated Carbon plate type
Odor removal efficiency≥90%
Processed Air Volume (m³/h)4 000
(1100l/s)		6 000
(1305l/s)		8 000
(2220l/s)		9 400
(2610l/s)		13 000
(3610l/s)		14 100
(3915l/s)
Equipment pressure drop (Pa)100 - 300
Dimension (Length x Width x Height) mm600 x 749 x 833600 x 800 x 833600 x 1425 x 833600 x 1530 x 833600 x 2105 x 833600 x 2260 x 833
Equipment Weight (kg)6369105110148161
Activated carbon content (kg)141628324248
Maintenance Space (mm)1030

FXF-ack series

Automatic cleaning kitchen exhaust purifier

Features

  • High-quality columnar carbon: High-quality columnar activated carbon, strong adsorption, fast deodorization, no ash, no secondary pollution, removal rate≥ 90%.
  • V-Pack Carbon plate structure: The W-shaped honeycomb mesh carbon board has more uniform filing and more thorough purification: the wind resistance is small.
  • Well-developed pore structure: The microcrystalline carbon material has a large specific surface area. The unfolded surface area of the micropores in1g of carbon can reach 800-3000m³, and the adsorption capacity is large.
  • Ergonomic design: Modular combination, pull-out activated carbon board, independent transparent plastic bag packaging, easy installation, and maintenance.
Product Specifications:
MODEL FKE-AC06K FKE-AC08K FKE-AC12K FKE-AC15K FKE-AC20K FKE-AC23K
SPECIFICATIONS:
Purification Efficiency
Processed Air Volume (m³/h)4 000
(1100l/s)		4 700
(1305l/s)		8 000
(2220l/s)		9 400
(2610l/s)		13 000
(3610l/s)		14 100
(3915l/s)
Equipment pressure drop (Pa)≥65
Input Power (V/Hz)220/50
Dimension (Length x Width x Height) mm560 x 900 x 850560 x 952 x 850560 x 1573 x 850560 x 1677 x 850560 x 2251 x 850560 x2407 x 850
Rated Power (W)92106184212276318
Equipment Weight (kg)8590140155200225
≥3 Bar water supply flow (m³/h)1.21.22.42.43.63.6
Water consumption (L)35357070105105
Inlet connection pipe/drainage connection pipe (G thread)DN20 (3/4’’) external thread / DN80 (3’) external thread
Status IndicationOperation (Failure, Cleaning and Operating)
Maintenance Space (mm)1030
OptionsIntelligent cleaning control box, Detergent tank cleaning system and Air Distribution plate.
MODEL FKE-AC06K FKE-AC08K FKE-AC12K FKE-AC15K FKE-AC20K FKE-AC23K
Installation Suspension, platform, frame or pipe installation
Basic Height (mm) 180
Running water flow requirements (L/min, under a 3kg pressure15.515.5313146.546.5
Water Consumption (L)46.546.59393139.5139.5
Detergent Consumption (L)1.411.412.822.824.234.23
Inlet pipe joint/drain pipe joint (G thread) DN20 (3/4’’) / DN80 (3”)
Washing system power (W) 800
Detergent tank size (mm) 400 x 520 x 110
Detergent tank weight (kg) Empty: 35kg, Full: 155kg
Control box size (mm) 495 x 245 x 435
Control Box weight (kg) 16
Control box functions Power off, automatic washing, automatic blow-drying, automatic power-on, automatic alarm and remote signal output - 24*7 Schedule Preparation.

Fke-series

Kitchen exhaust purifier

Features

  • Kitchen Fume Purifier: Two-stage plate saw tooth ionization technology, Purification efficiency of 97% on single pass. Automated wash cycle available.
  • Smart operation: Pulse Width Modulated (PWM) intelligent power supply, Status indicator lights for, Operation, Maintenance and Fault. RS485 signal transmitter for BMS management systems.
  • Installation regardless of left or right: The direction of the entrance and exit can be adjusted according to the needs of the site, and the on-site construction and installation are convenient.
  • Modular designs combinations: Nested double-opening door allows for easy maintenance and service. Robust design coated with electrostatic UV resistant paint, to prevent corrosion and rust.
Product Specifications:
MODEL FKE-06K FKE-08K FKE-12K FKE-15K FKE-20K FKE-23K
SPECIFICATIONS:
Purification Efficiency
Processed Air Volume (m³/h)4 000
(1100l/s)		4 700
(1305l/s)		8 000
(2220l/s)		9 400
(2610l/s)		13 000
(3610l/s)		14 100
(3915l/s)
Equipment pressure drop (Pa)<65
Input Power (V/Hz)220/50
Dimension (Length x Width x Height) mm560 x 838 x 833560 x 897 x 833560 x 1516 x 833560 x 1627 x 834560 x 2194 x 834560 x 2357 x 833
Rated Power (W)92106184212276318
Equipment Weight (kg)6876110121160172
Status IndicationOperating, Cleaning, Failure
OptionOil collected tray, Air distribution plate
Maintenance Space (mm)1030

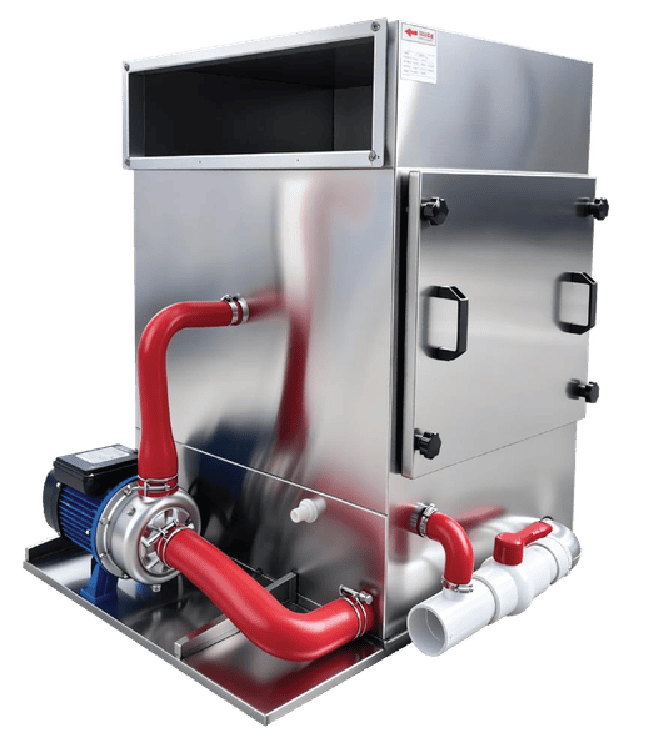

Fke-aw

Detergent tank cleaning system

Features

  • High-lift pump and large capacity tank with integrated dosing pump.
Product Specifications:
DETERGENT PUMP AND STORAGE TANK
SPECIFICATIONS:
Dimension (Length x Width x Height) mm410 x 540 x 1120
Washing tank capacity (L)120
Rated power (W)800
Outlet pipe interfaceDN15 Internal thread
Equipment weight (kg)Empty: 35 kg, Full: 155kg
INTELLIGENT CLEANING CONTROL BOX
SPECIFICATIONS:
Dimension (Length x Width x Height) mm500 x 430 x 210
Equipment weight (kg)16
Control OutputFKE-AC, Detergent Pump and Solenoid Valve
Control box functionAuto/Manual washing mode, One to one cleaning control, Factory pre-program washing sequence, fan blower linkage ability, 7 days x 24 hours dock indicator
Input powerAC220V/50Hz

FUV-K series

Kitchen EFFICIENCY UVC LIGHT

Features

  • Efficient Deodorizing and Sterilizing lamp: Resistant to high temperature, corrosion, and light transmission, with a service life of about 9000h.
  • Dual band UVC wavelengths: 185nm breaks down the molecular bonds, the 253.7nm oxidises and decomposes. The odor removal rate is above 90%.
  • Compact Lamp design: U-shaped pull-out tube design, the equipment is compact and less easily broken. The distance between the lamps is 100mm, the ultraviolet radiation intensity is high.
  • Ergonomic design: The start/stop switch and the running indicators are convenient and simple to understand the operating status. The nested double door design is easier to maintain.
Product Specifications:
MODEL FUV-06K FUV-08K FUV-12K FUV-15K FUV-20K FUV-23K
SPECIFICATIONS:
Purification Efficiency
Odor removal efficiency≥90%
Processed Air Volume (m³/h)4 000
(1100l/s)		4 700
(1305l/s)		8 000
(2220l/s)		9 400
(2610l/s)		13 000
(3610l/s)		14 100
(3915l/s)
Equipment pressure drop (Pa)≥50
Input Power (V/Hz)220/50
Dimension (Length x Width x Height) mm413 x 825 x 833431 x 884 x 833431 x 150 x 833431 x 1614 x 833431 x 2181 x 833431 x 2344 x 833
Rated Power (W)130150260300390450
Equipment Weight (kg)373854577578
Status IndicationOperating (On/Off)
Service Life of lamp (h)9000
Maintenance Space (mm)1030
Back To Top

Fke-Q SERIES

KITCHEN EXHAUST PURIFIER

Features

  • Corrosion and dust resistant.
  • Convenient side door opening design.
  • Steady-state bipolar power supply.
  • Higher purification efficiency rate.
  • Panel indication lights.
  • High Performance rate.
  • Safety interlock switches.
  • Intelligent control system.
  • Real-time monitoring and control via remote network.
Products Structure:
Product Specifications:
Model (Open right) FKE01Q FKE01Q (L) FKE02Q FKE02Q (L) FKE03Q FKE03Q (L) FKE04Q FKE04Q (L) FKE05Q FKE05Q (L)
SPECIFICATIONS:
Dimension (Length x Width x Height) mm640 x 640 x 540640 x 1100 x 540640 x 1560 x 540640 x 2020 x 540640 x 2480 x 540
Air Flow (m³/h)Arrestance 95%4 000
(1100l/s)		8 000
(2200l/s)		12 000
(3300l/s)		16 000
(4400l/s)		20 000
(5500l/s)
Infrared spectrophotometry 90%5 000
(1390l/s)		10 000
(2780l/s)		15 000
(4170l/s)		20 000
(5560l/s)		25 000
(6940l/s)
DOP95%2 000
(555l/s)		4 000
(1100l/s)		6 000
(1660l/s)		8 000
(2200l/s)		10 000
(2780l/s)
Input power (V/Hz)220/50
Rated Power (W)52688396125
Equipment resistance (Pa)Arrestance100-200
Infrared spectrophotometry100-200
DOP95%20˜40
Equipment Weight (kg)92.5116.5153.5192230
Oil Collection tray (Optional)FJY01FJY02FJY03FJY04FJY05
Status indicationFailure, Cleaning, Operating and Power
OptionsOil collecting tray, Rear activated carbon plate and Air distribution plate.
Maintenance space (mm)700

* Definition of left/right-handed doors: Standing facing the equipment at its outlet, the access door at the right-hand side is the right-handed door, and at the left-hand side is the left-handed door

Fke-ACQ SERIES

AUTOMATIC CLEANING KITCHEN EXHAUST PURIFIER

Features

  • Automatic washing and power-on start reduce the maintenance workload.
  • The smart control unit makes it possible to automatically wash the purifying modules at regular intervals, effectively solving the
    problems of inconvenient washing with ceiling installation.
  • The programming for every section of washing is available, so that custom washing procedure can be made in light of customer needs.
  • The PWM power supply mode makes the product more steady, safe, and efficient.
  • With a cleaning solution tank and pump-valve system, the product can clean better with warm water mixed.
  • The smart control system can program 24/7.
  • With high-performance washing nozzles, spray cleaning solution can make oil clots swell and come off.
  • Pipe systems made up of copper pipes and stainless 316 water pipes; imported high-performance spraying nozzles.
Product Specifications:
Model (Open right) FKE-AC01Q (L) FKE-AC02Q (L) FKE-AC03Q (L) FKE-AC04Q (L) FKE-AC05Q (L)
SPECIFICATIONS:
Dimension (Length x Width x Height) mm790 x 640 x 540790 x 1100 x 540790 x 1560 x 540790 x 2020 x 540790 x 2480 x 540
Air Flow (m³/h)Arrestance 95%4 000
(1100l/s)		8 000
(2200l/s)		12 000
(3300l/s)		16 000
(4400l/s)		20 000
(5500l/s)
Infrared spectrophotometry 90%5 000
(1390l/s)		10 000
(2780l/s)		15 000
(4170l/s)		20 000
(5560l/s)		25 000
(6940l/s)
DOP95%2 000
(555l/s)		4 000
(1100l/s)		6 000
(1660l/s)		8 000
(2200l/s)		10 000
(2780l/s)
Input power (V/Hz)220/50
Rated Power (W)52688396125
Equipment resistance (Pa)Arrestance100-200
Infrared spectrophotometry100-200
DOP95%20˜40
Equipment Weight (kg)110150200250300
Status indicationAir distribution plate/ Air flow uniform distribution plate, Rear activated carbon table and oil collecting tray.
OptionsPower indicator, running indicator, cleaning indicator and alarm indicator
Maintenance space (mm)700
InstallationSuspension, platform, frame or pipe installation
Basic Height (mm)180
Running water flow requirements (L/min, under a 3kg pressure12.424.837.249.662
Water Consumption (L)3774111148185
Detergent Consumption (L)1.132.263.44.535.66
Inlet pipe joint/drain pipe joint (G thread)DN20 (3/4’’) / DN80 (3”)
Washing system power (W)800
Detergent tank size (mm)400 x 520 x 1100
Detergent tank weight (kg)Empty: 35kg, Full: 155kg
Control box size (mm)495 x 245 x 435
Control box weight (kg)16
Control box functionsPower off, automatic washing, automatic blow-drying, automatic power-on, automatic alarm and remote signal output - 24*7 Schedule Preparation

amg: smart air quality monitor

amigo series

Features

  • Real-time PM2.5, temperature, humidity indication on screen.
  • Powered by either AC 220V or three AAA batteries.
  • Flashing alarm: Alarm for high PM2.5 and low battery.

Features

  • Real-time fast reading of PM2.5, temperature and humidity, CO2 and TVOC.
  • Red, blue and green indicator light display.
  • Real time data captured using RS485 connection to BMS or PC.
  • Wall-mounted or Ceiling Mounted.
Product Specifications:
MODEL AMIGO 4.0 AMIGO 1.3
SPECIFICATIONS:
Input VoltageAC 240V/50hZ DC 7-32 VDC 5V
Working Current≤250mA≤500mA
Working Environment Temperature-10 - 50°C-10 - 50°C
PM2.5 Measurement precision±15%±15% 10μg/m³
PM2.5 Measurement Range0μg/m³ -999μg/m³0μg/m³ - 999μg/m³
CO2 Measurement precision±40ppm ±3% -
CO2 Measurement Range400ppm - 5000ppm -
TVOC Measurement range0.22mg/m³ - 9.99mg/m³ -
Temperature Measurement precision±0.3°C±1-2°C
Temperature Measurement range-10-50°C10 – 50°C
Humidity Measurement precision±3%rh±5-8%RH
Humidity Measurement Range0 - 100%RH20-95%
Size of Base (Length + Width = Height) mm134 x 134 x 35 (mm)86 x 48 x 49 (mm)
WIFI TypeWi-Fi 2.5GHz -

amigo series

AMG SMART AIR QUALITY MONITOR

Features

  • Monitor PM1.0, PM2.5 and PM10.
  • Supports Wi-Fi connection for indoor and outdoor air quality inspection.
  • Features a 3.2-inch color display screen.
Get in touch with us to discuss your
Air Purification Requirements
Copyright © 2021 – 2024 Sanitizair | All Rights Reserved
Design & Care by ERC Design
